Tuned Mass Dampers (TMD)

Flexibility with high-performance GERB TMDs

In addition to spring element, elastomer and damper solutions we offer high-performance vibration damping systems to meet the highest customer expectations and requirements.



Tuned Mass Dampers (TMDs) cover a wide range of requirements such as a frequency range of 0.1 Hz – 200 Hz and a vibration mass range of 500 g – 600 t. Each TMD system is always a custom solution connected to a single point in the structure, adapted to the main construction and the respective natural frequency.



In general, GERB TMDs are passive systems and consist of:

They are either horizontally or vertically effective. In most vertical applications, helical compression springs and viscous damping are used. In case of horizontal and torsional vibrations, GERB also supplies TMDs with leaf springs or pendulums.



TMDs are mainly used in wide-span, tall or slender structures that are oscillated by wind forces, machines or pedestrian traffic. When natural frequencies and inherent damping are low, vibrations can easily be reduced.



The use of TMDs makes particular sense in the following cases:



  1. Large and slender free-standing structures (e.g. bridges, chimneys, television towers, antennas)
  2. Light-weight structures (e.g. footbridges, walkways, grandstands)
  3. To reduce structural vibrations caused by machinery (e.g. due to unbalance forces)

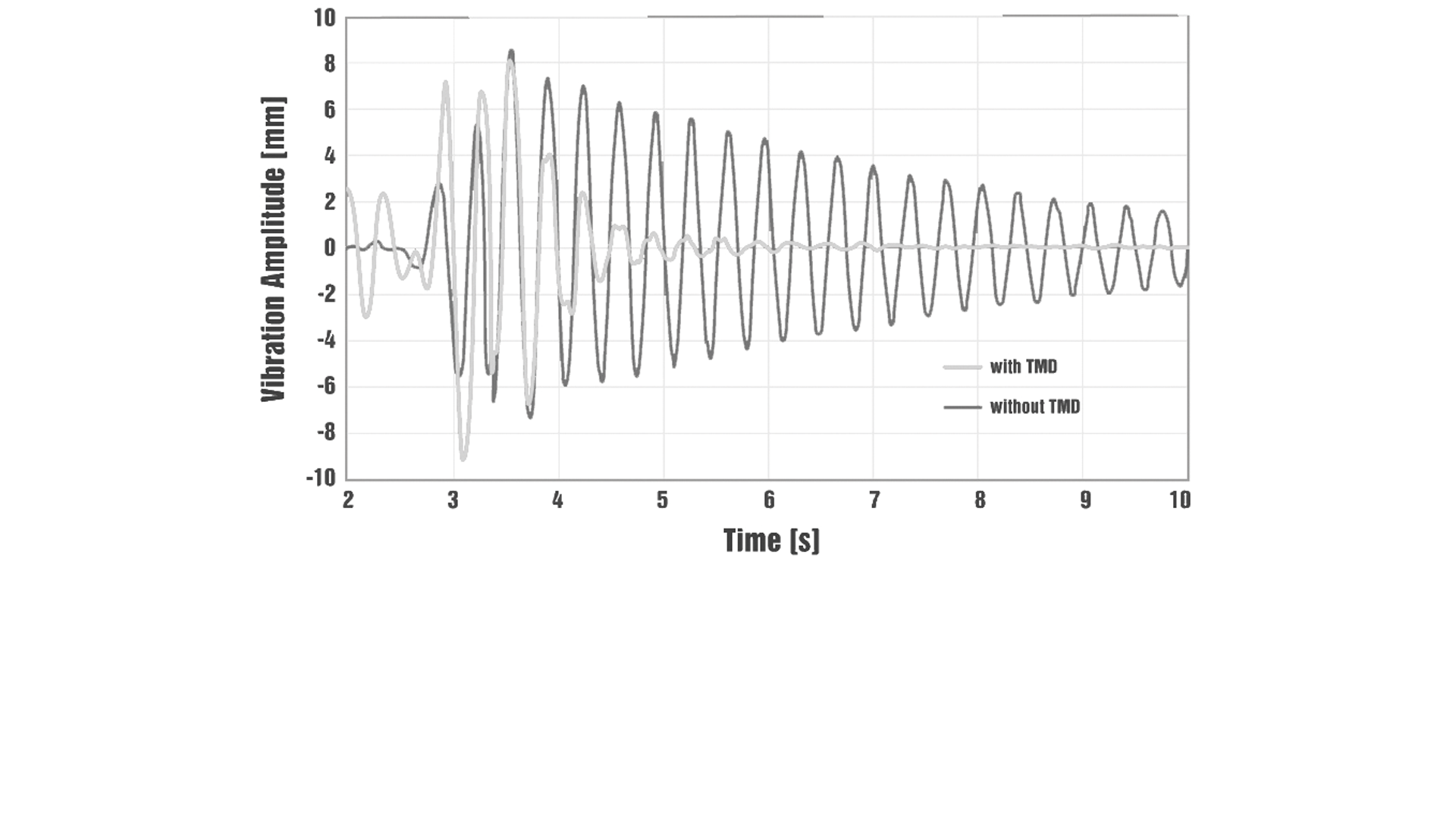

Typical damped vibration of a structure without and with TMD

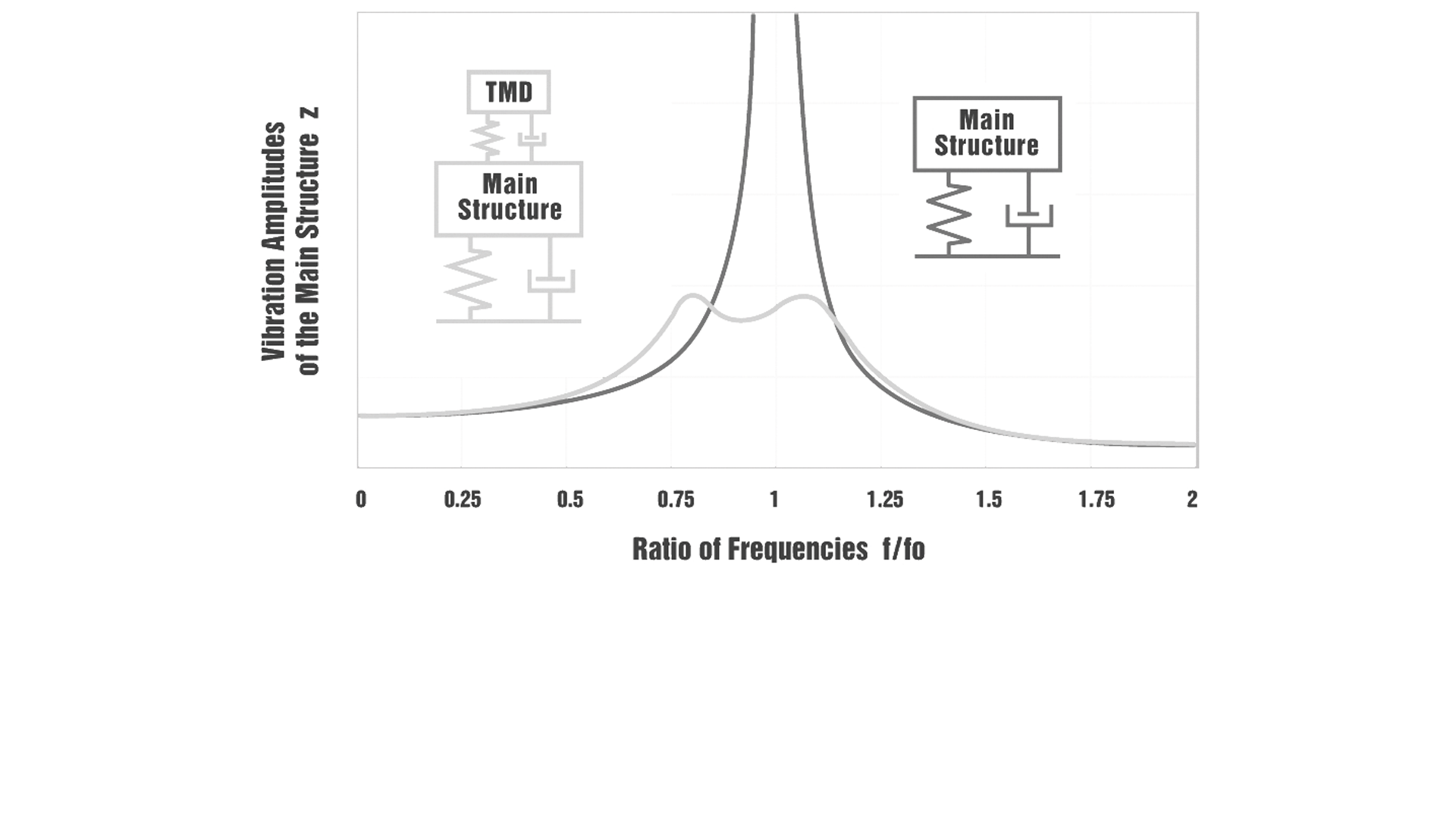

Vibration of the main structure

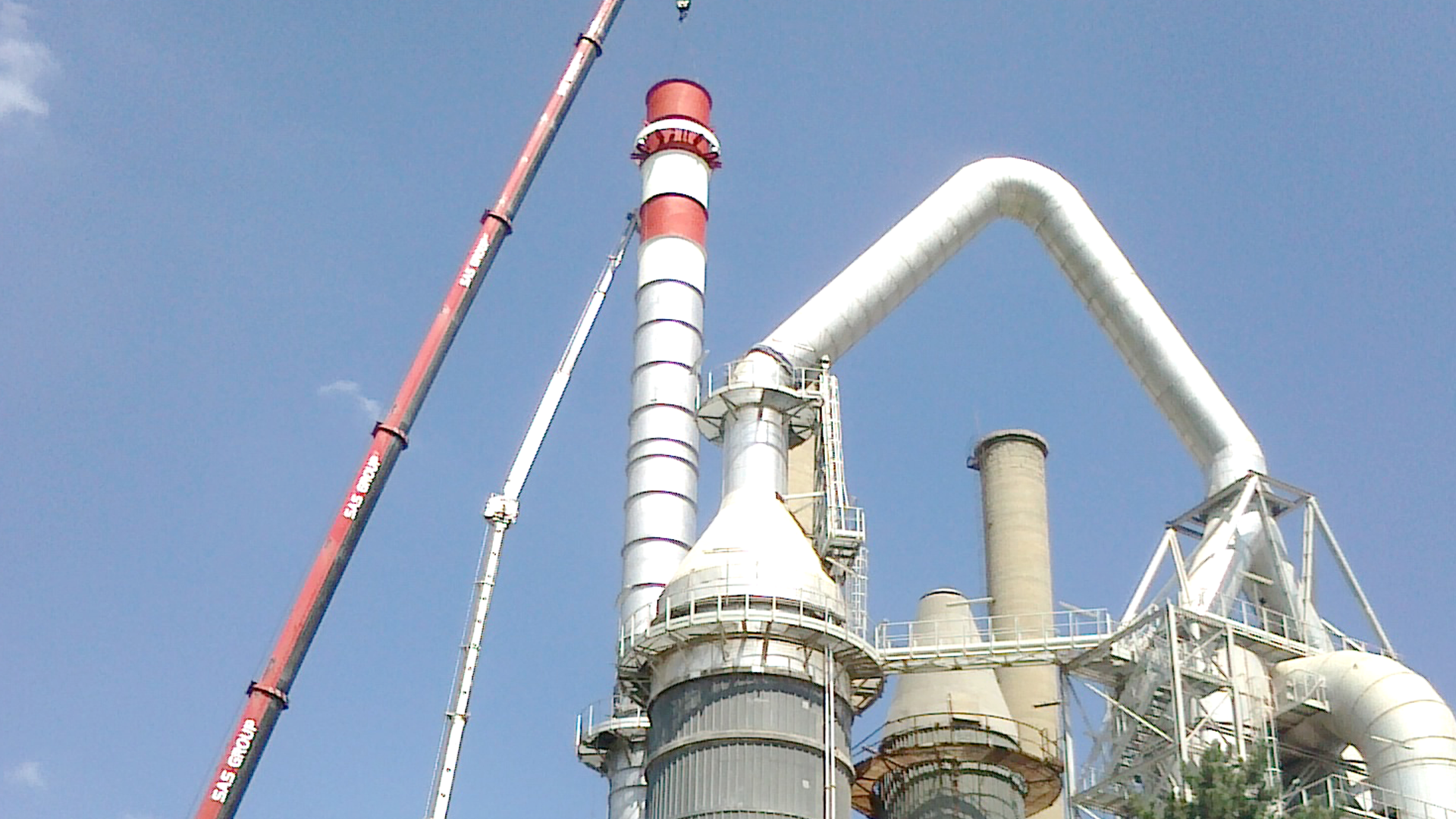

Chimney | Arquata Scrivia, Italia

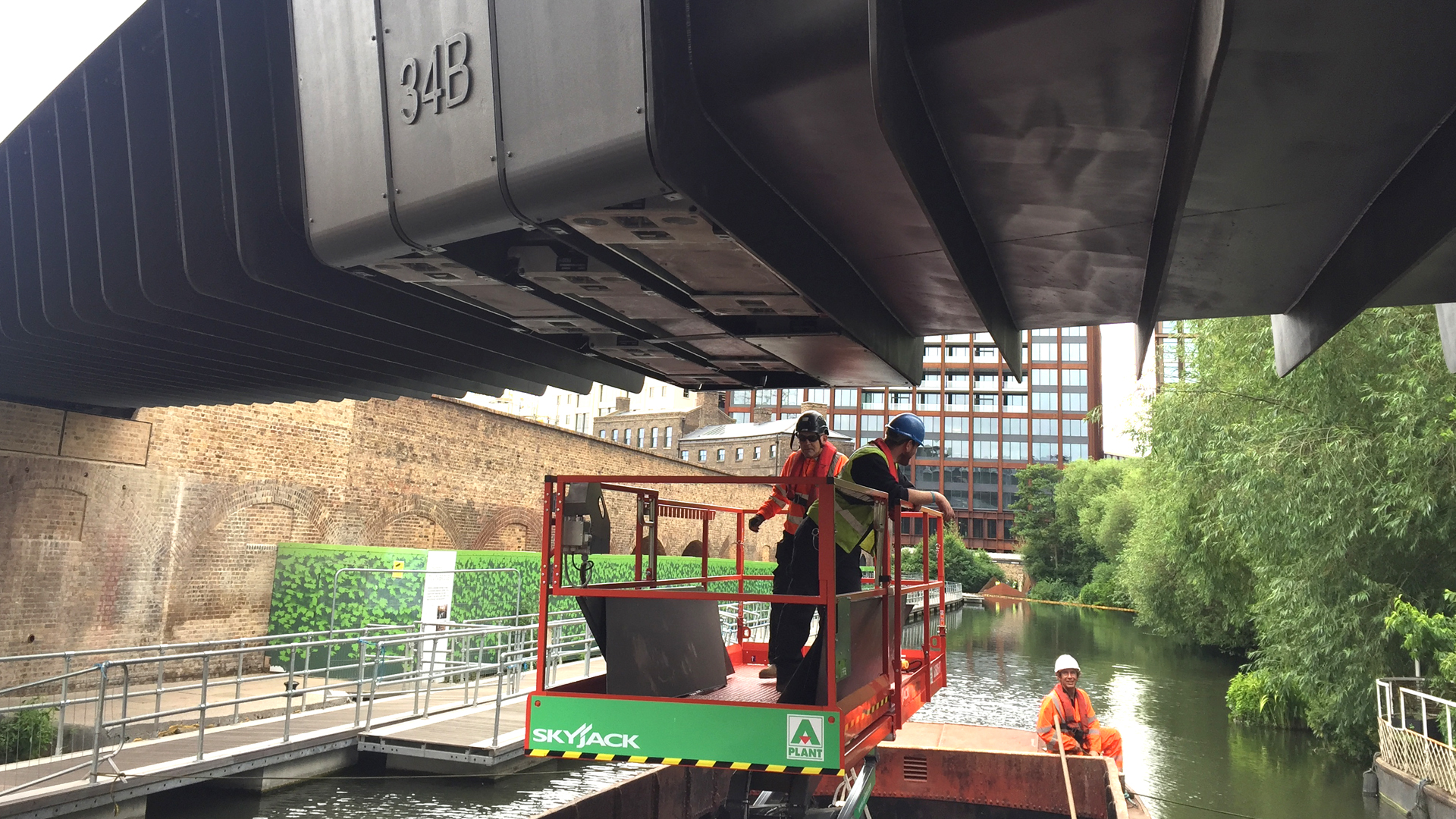

Footbridge | BR3 Camley Street, London, Englan

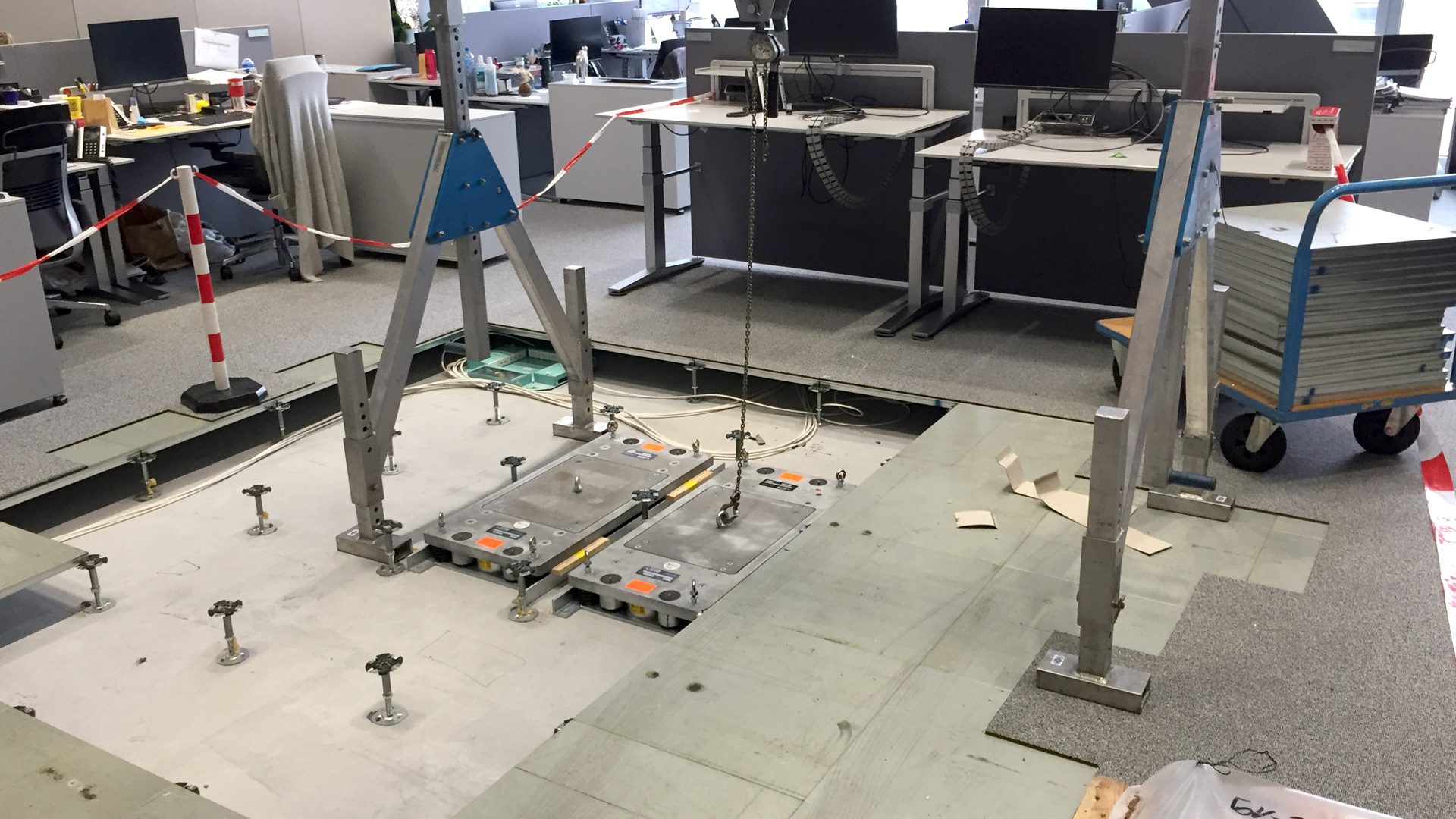

Office Building | Floor TMDs

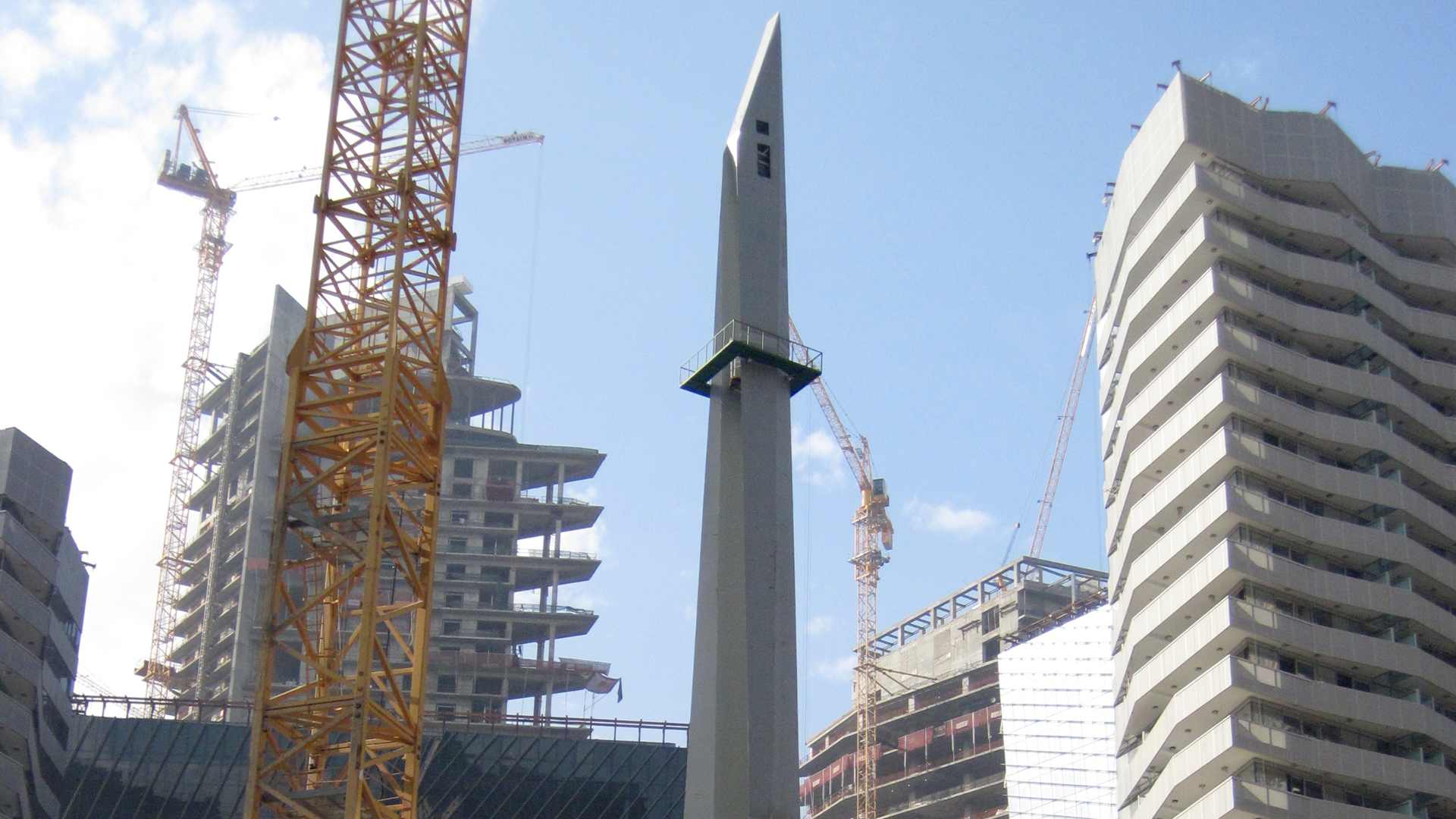

Minaret | Minaret Riyadh, Riyadh, Saudi-Arabia

Further resources

Brochure: TUNED MASS CONTROL – Tuned mass dampers for bridges, floors and tall structures

Brochure: Project references selection in tuned mass damping (TMD)

Application sectors

MANUFACTURING, INDUSTRY & ENERGY
ARCHITECTURE & CONSTRUCTION
TRANSPORTATION & INFRASTRUCTURE

Tuned Mass Dampers (TMD)

Flexibility with high-performance GERB TMDs

In addition to spring element, elastomer and damper solutions we offer high-performance vibration damping systems to meet the highest customer expectations and requirements.



Tuned Mass Dampers (TMDs) cover a wide range of requirements such as a frequency range of 0.1 Hz – 200 Hz and a vibration mass range of 500 g – 600 t. Each TMD system is always a custom solution connected to a single point in the structure, adapted to the main construction and the respective natural frequency.



In general, GERB TMDs are passive systems and consist of:

They are either horizontally or vertically effective. In most vertical applications, helical compression springs and viscous damping are used. In case of horizontal and torsional vibrations, GERB also supplies TMDs with leaf springs or pendulums.



TMDs are mainly used in wide-span, tall or slender structures that are oscillated by wind forces, machines or pedestrian traffic. When natural frequencies and inherent damping are low, vibrations can easily be reduced.



The use of TMDs makes particular sense in the following cases:



  1. Large and slender free-standing structures (e.g. bridges, chimneys, television towers, antennas)
  2. Light-weight structures (e.g. footbridges, walkways, grandstands)
  3. To reduce structural vibrations caused by machinery (e.g. due to unbalance forces)
Typical damped vibration of a structure without and with TMD
Vibration of the main structure

Chimney | Arquata Scrivia, Italia

Footbridge | BR3 Camley Street, London, Englan

Office Building | Floor TMDs

Minaret | Minaret Riyadh, Riyadh, Saudi-Arabia

Further resources

Brochure: TUNED MASS CONTROL – Tuned mass dampers for bridges, floors and tall structures

Brochure: Project references selection in tuned mass damping (TMD)

Application sectors

    MANUFACTURING,
      INDUSTRY & ENERGY

  ARCHITECTURE &
    CONSTRUCTION

  TRANSPORTATION &
    INFRASTRUCTURE

Tuned Mass Dampers (TMD)

Flexibility with high-performance GERB TMDs

In addition to spring element, elastomer and damper solutions we offer high-performance vibration damping systems to meet the highest customer expectations and requirements.



Tuned Mass Dampers (TMDs) cover a wide range of requirements such as a frequency range of 0.1 Hz – 200 Hz and a vibration mass range of 500 g – 600 t. Each TMD system is always a custom solution connected to a single point in the structure, adapted to the main construction and the respective natural frequency.



In general, GERB TMDs are passive systems and consist of:

They are either horizontally or vertically effective. In most vertical applications, helical compression springs and viscous damping are used. In case of horizontal and torsional vibrations, GERB also supplies TMDs with leaf springs or pendulums.



TMDs are mainly used in wide-span, tall or slender structures that are oscillated by wind forces, machines or pedestrian traffic. When natural frequencies and inherent damping are low, vibrations can easily be reduced.



The use of TMDs makes particular sense in the following cases:



  1. Large and slender free-standing structures (e.g. bridges, chimneys, television towers, antennas)
  2. Light-weight structures (e.g. footbridges, walkways, grandstands)
  3. To reduce structural vibrations caused by machinery (e.g. due to unbalance forces)

Typical damped vibration of a structure without and with TMD

Vibration of the main structure

Chimney | Arquata Scrivia, Italia

Footbridge | BR3 Camley Street, London, England

Office Building | Floor TMDs

Minaret | Minaret Riyadh, Riyadh, Saudi-Arabia
